ESP01s not working after flashing with ESP Easy >> Solution

#1

This is a quick posting in case any one else gets tripped-up by the issue.

Although I have a number of Wemos D1 Mini devices working with Node-RED, this is the first time I've tried using the smaller ESP01s variety.

I recently flashed a set of ESP01s devices (with ESP Easy) and they all worked whilst they were in the USB Programmer, but when I mounted them on a breadboard - some of them wouldn't connect to my home WiFi. (i.e. the on-board small blue LED (that indicates WiFi connection) never came on.)

After a few hours pulling my hair out, I eventually tracked the problem down.

The ones that DO NOT have white silk screening on them need a pull-up resistor (10K ohms) from the CHPD pin (might be labelled as EN) to +3V3 (to enable the device otherwise it's disabled).


0 Likes

#2

Ta for info

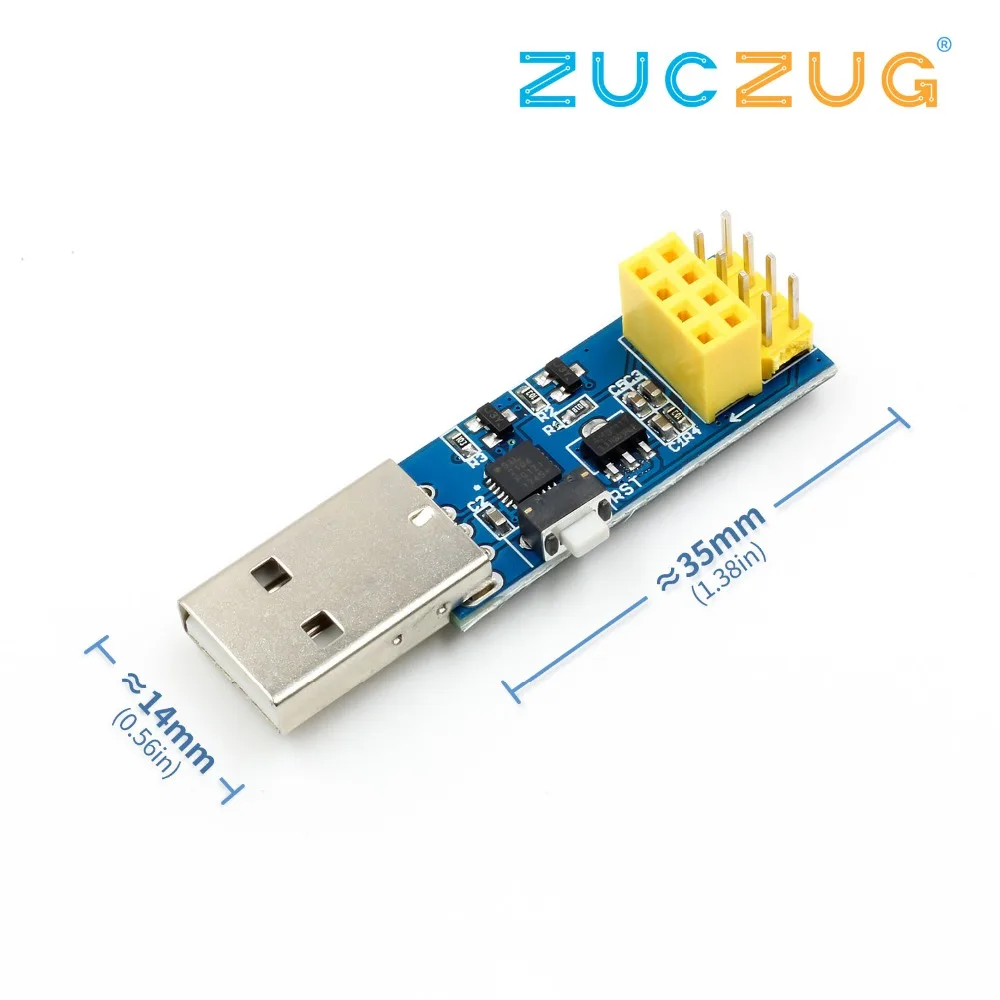

Where did you get that nice looking programmer from?

0 Likes

#3

AliExpress - they were GBP 1.33 when I bought them.

You can probably get them from Banggood or Amazon.

0 Likes

#4

I have to say that I gave up on ESP8266 devices when I first tried them as getting the power supply requirements right was so flippin' hard.

Once I discovered the Wemos D1 Mini's though, problems over, not had any problems since (except with their temp/humidity sensor board which isn't worth the money at all. I have a 1/2 dozen or so in use now and not had one fail yet.

0 Likes

#5

Hi Julian,

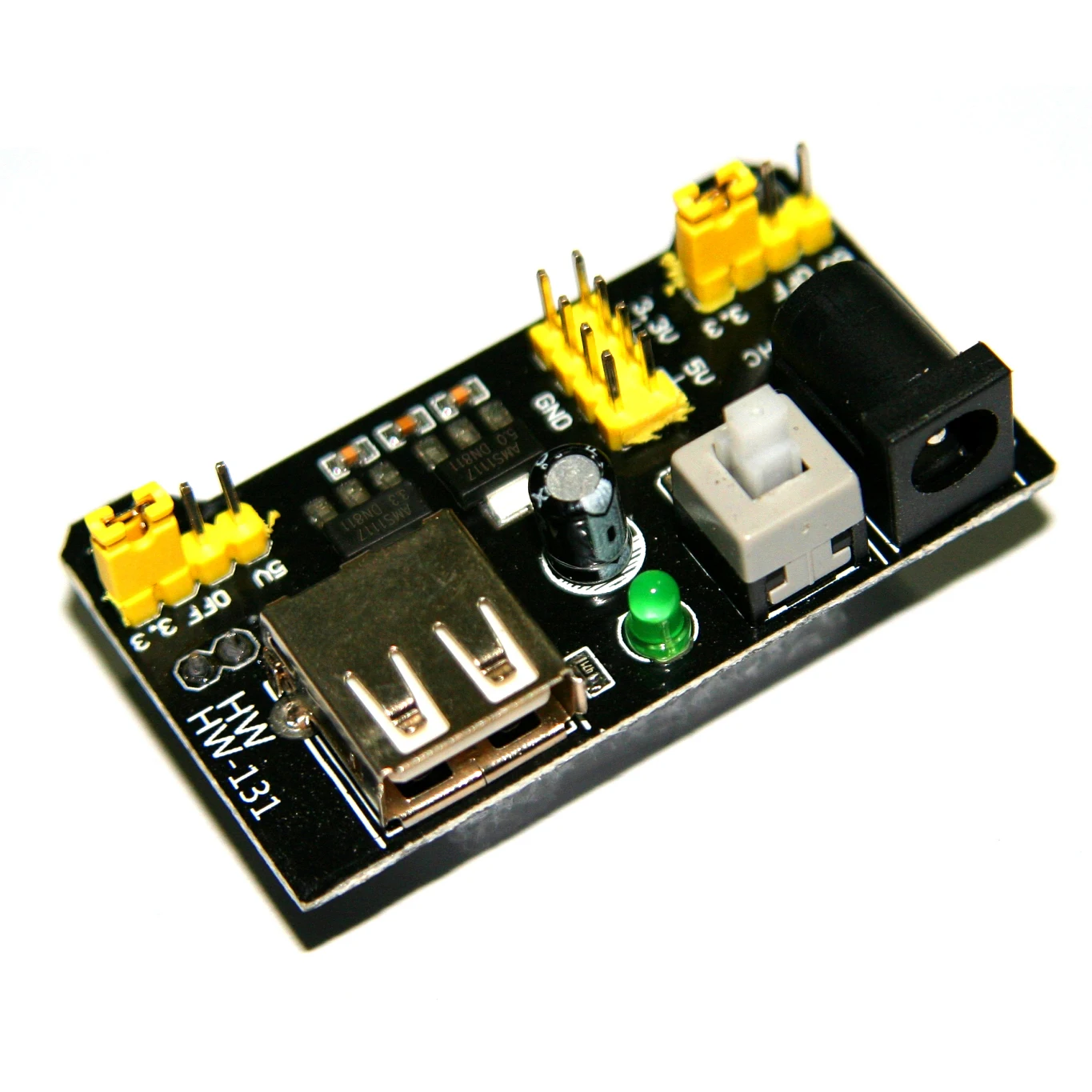

I found these Breadboard Power Adapters on AliExpress a couple of months ago for GBP0.30

ESP-Power-Adapter-1

Initially I wanted them to power a couple of Wemos D1 Minis where the micro-USB socket had come off the board, but later found them so useful to power other breadboard-based circuits.

Note:
I did find some replacement USB-sockets at CPC-Farnell, but at GBP0.70 a go it didn't seem worth replacing the damaged socket (so I didn't bother)!!

I am amazed how many components are on the sub-module for the ultra-low price !!!

0 Likes

#6

Thanks Dave, they look better than the ones I was originally trying to use and I do have something similar to power hacks that don't use something like the D1-mini for power but to be honest, those are so cheap that I now use them for everything. Well except for the M5 Stack (ESP32) that I brought on a whim - that is a great piece of kit.

https://www.aliexpress.com/wholesale?SearchText=m5stack

0 Likes

#7

I have several ESP8266-01's in various locations- some control relays, some have sensors. I just wire 3v3, RST and CH_PD together. For power, I use these little AMS1117 modules:

These modules take anything from 4.5V to 12V on the input and output 3v3 which is exactly what the ESP8266-01's like.

0 Likes

#8

ESPs are great, aside from one annoyance, the power consumption (of the wifi module). But if you correctly size a solar panel you can get away with using a single 18650 cell (along with some power management routines) to keep them running.

And best of all, NR keeps a close eye on them. Without NR, monitoring would be rather hit and miss.

0 Likes
