So I have this flow where if I press the timestamp, it'll execute a batch file and execute a command.
[
{
"id": "f5e0962424954702",
"type": "tab",
"label": "Flow 2",
"disabled": false,
"info": "",
"env": []
},
{
"id": "2f226dc2afcea3e9",
"type": "exec",
"z": "f5e0962424954702",
"command": "set PATH=%PATH%;C:\\ti\\ccs1280\\ccs\\ccs_base\\scripting\\examples\\loadti",
"addpay": "",
"append": "",
"useSpawn": "false",
"timer": "10",
"winHide": false,
"oldrc": false,
"name": "",
"x": 540,
"y": 240,
"wires": [
[
"c050ff703eaf5227"
],
[
"b9d3789072ad1f01"
],
[
"dc8181e4e34ed768"
]
]
},
{
"id": "c050ff703eaf5227",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 970,
"y": 180,
"wires": []
},
{
"id": "b9d3789072ad1f01",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 970,
"y": 220,
"wires": []
},
{
"id": "dc8181e4e34ed768",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 970,
"y": 260,
"wires": []
},
{
"id": "1c091fe5c3934d25",
"type": "inject",
"z": "f5e0962424954702",
"name": "SET PATH",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 160,
"y": 240,
"wires": [
[
"2f226dc2afcea3e9"
]
]
},
{
"id": "f4ca68a198b8dc20",
"type": "exec",
"z": "f5e0962424954702",
"command": "loadti",
"addpay": "",
"append": "",
"useSpawn": "false",
"timer": "10",
"winHide": false,
"oldrc": false,
"name": "",
"x": 370,
"y": 420,
"wires": [
[
"c0856c66ca88de7a"
],
[
"b13935526a1071b0"
],
[
"4adf7302dd6baa9b"
]
]
},
{
"id": "c0856c66ca88de7a",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 570,
"y": 360,
"wires": []
},
{
"id": "b13935526a1071b0",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 570,
"y": 420,
"wires": []
},
{
"id": "4adf7302dd6baa9b",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 570,
"y": 480,
"wires": []
},
{
"id": "1b69fe592e6a3f44",
"type": "inject",
"z": "f5e0962424954702",
"name": "LOADTI",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 220,
"y": 420,
"wires": [
[
"f4ca68a198b8dc20"
]
]
},
{
"id": "add8b559e7912a9f",
"type": "comment",
"z": "f5e0962424954702",
"name": "",
"info": "",
"x": 300,
"y": 500,
"wires": []
},
{
"id": "085fcc5d2a43e8d4",
"type": "exec",
"z": "f5e0962424954702",
"command": "loadti -c c:\\ztemp\\TMS320F28377D.ccxml c:\\ztemp\\FLASH1.out",
"addpay": "",
"append": "",
"useSpawn": "false",
"timer": "10",
"winHide": false,
"oldrc": false,
"name": "",
"x": 970,
"y": 640,
"wires": [
[
"3a512dd2734364c9"
],
[
"a662fa1fc1c7fb8d"
],
[
"f9d1207b6da54370"
]
]
},
{
"id": "3a512dd2734364c9",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 1430,
"y": 580,
"wires": []
},
{
"id": "a662fa1fc1c7fb8d",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 1430,
"y": 640,
"wires": []
},
{
"id": "f9d1207b6da54370",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 1430,
"y": 700,
"wires": []
},
{
"id": "0a97cbeb31aa6dd8",
"type": "link in",
"z": "f5e0962424954702",
"name": "link in 3",
"links": [],
"x": 115,
"y": 660,
"wires": [
[
"48089d36c5298a0b"
]
]
},
{
"id": "532e7da4cc4fa936",
"type": "rising-edge",
"z": "f5e0962424954702",
"name": "",
"threshold": "0.5",
"x": 590,
"y": 660,
"wires": [
[
"085fcc5d2a43e8d4"
]
]
},
{
"id": "8dd91eb83d1469f8",
"type": "change",
"z": "f5e0962424954702",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "1",
"tot": "num"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 400,
"y": 640,
"wires": [
[
"532e7da4cc4fa936"
]
]
},
{
"id": "48089d36c5298a0b",
"type": "switch",
"z": "f5e0962424954702",
"name": "",
"property": "payload",
"propertyType": "msg",
"rules": [
{
"t": "true"
},
{
"t": "false"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 210,
"y": 660,
"wires": [
[
"8dd91eb83d1469f8"
],
[
"42e0875cdcbe6ebf"
]
]
},
{
"id": "42e0875cdcbe6ebf",
"type": "change",
"z": "f5e0962424954702",
"name": "",
"rules": [
{
"t": "set",
"p": "payload",
"pt": "msg",
"to": "0",
"tot": "num"
}
],
"action": "",
"property": "",
"from": "",
"to": "",
"reg": false,
"x": 400,
"y": 680,
"wires": [
[
"532e7da4cc4fa936"
]
]
},
{
"id": "9b16580f7953a0c6",
"type": "ui_button",
"z": "f5e0962424954702",
"name": "",
"group": "88145eb0.23895",
"order": 7,
"width": 0,
"height": 0,
"passthru": false,
"label": "GREEN",
"tooltip": "",
"color": "",
"bgcolor": "",
"className": "",
"icon": "",
"payload": "",
"payloadType": "date",
"topic": "topic",
"topicType": "msg",
"x": 600,
"y": 620,
"wires": [
[
"085fcc5d2a43e8d4"
]
]
},
{
"id": "a4f4c9be21d50a87",
"type": "comment",
"z": "f5e0962424954702",
"name": "TURN ON C7 FROM PLC",
"info": "",
"x": 190,
"y": 620,
"wires": []
},
{
"id": "9ef820f5f01a3a67",
"type": "inject",
"z": "f5e0962424954702",
"name": "FULL STRING",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 600,
"y": 760,
"wires": [
[
"085fcc5d2a43e8d4"
]
]
},
{
"id": "936fa07d1871351c",
"type": "exec",
"z": "f5e0962424954702",
"command": "c:\\ztemp\\test1.cmd",
"addpay": "",
"append": "",
"useSpawn": "false",
"timer": "10",
"winHide": false,
"oldrc": false,
"name": "",
"x": 390,
"y": 920,
"wires": [
[
"9a86c91d7c42c57d"
],
[
"1f48a89772e6bdda"
],
[
"46e57aa76ecc35cf"
]
]
},
{
"id": "9a86c91d7c42c57d",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 670,
"y": 860,
"wires": []
},
{
"id": "1f48a89772e6bdda",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 670,
"y": 920,
"wires": []
},
{
"id": "46e57aa76ecc35cf",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 670,
"y": 980,
"wires": []
},
{
"id": "a24467c5dd7e5a99",
"type": "inject",
"z": "f5e0962424954702",
"name": "EXEC1",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 190,
"y": 920,
"wires": [
[
"936fa07d1871351c"
]
]
},
{
"id": "7ef2231aa6966c70",
"type": "exec",
"z": "f5e0962424954702",
"command": "c:\\ztemp\\test2.cmd",
"addpay": "",
"append": "",
"useSpawn": "false",
"timer": "10",
"winHide": false,
"oldrc": false,
"name": "",
"x": 390,
"y": 1140,
"wires": [
[
"0f25a1a51bbb3784"
],
[
"4cdb78d3222409fc"
],
[
"f820e5af0be30d12"
]
]
},
{
"id": "0f25a1a51bbb3784",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 670,
"y": 1080,
"wires": []
},
{
"id": "4cdb78d3222409fc",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 670,
"y": 1140,
"wires": []
},
{
"id": "f820e5af0be30d12",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "false",
"statusVal": "",
"statusType": "auto",
"x": 670,
"y": 1200,
"wires": []
},
{
"id": "c1a2a458e0c83dd3",
"type": "inject",
"z": "f5e0962424954702",
"name": "EXEC2",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "date",
"x": 190,
"y": 1140,
"wires": [
[
"7ef2231aa6966c70"
]
]
},
{
"id": "eb80f8c4fc5e1887",
"type": "status",
"z": "f5e0962424954702",
"name": "",
"scope": [
"7ef2231aa6966c70",
"936fa07d1871351c"
],
"x": 220,
"y": 1380,
"wires": [
[
"5a69ed07ca958870"
]
]
},
{
"id": "5a69ed07ca958870",
"type": "debug",
"z": "f5e0962424954702",
"name": "",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "true",
"targetType": "full",
"statusVal": "",
"statusType": "auto",
"x": 370,
"y": 1380,
"wires": []
},
{
"id": "88145eb0.23895",
"type": "ui_group",
"name": "PLC_Read",
"tab": "",
"order": 1,
"disp": true,
"width": "8",
"collapse": false,
"className": ""
},
{
"id": "bda6edc0c4b77c69",
"type": "global-config",
"env": [],
"modules": {
"node-red-contrib-edge-trigger": "1.0.1",
"node-red-dashboard": "3.6.6"
}
}
]

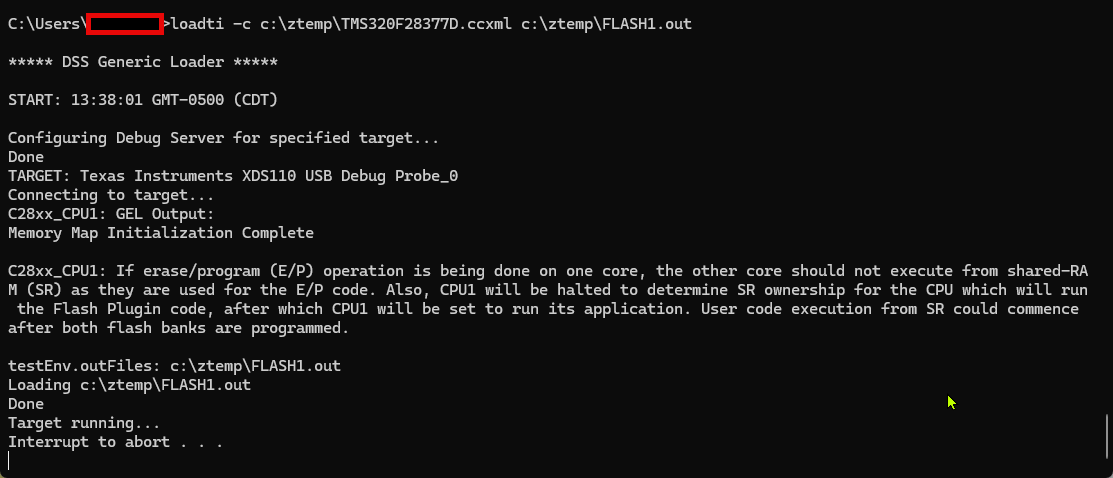

If I execute the batch file in the command prompt, it looks like this:

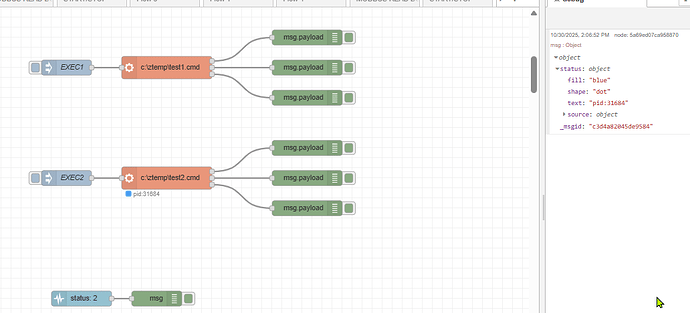

If I execute exec2 2 node from node-red, I get this
It just tells me I have a blue dot and PID, but that's it. No indication that it's done.
The goal, is to have node-red know when the execute is done so it can move on to do other things. THoughts on this?
