๐ŸŒ UIBUILDER: Development update for next release (v7.5.0)

It's that time to share some info on what's happening in the world of UIBUILDER. :blush:

v7.5 will have a number of improvements, so far:

  • Updates to the front-end router library

    • A new menu-generator along with new router config options. You will be able to auto-generate navigation route menu's, both horizontal and vertical, anywhere on-page. The menu's will be responsive and accessible.
    • Along with the generator, there will be improvements to the layout and styling of the menus.
  • Two new Editor actions are being added to make it super-easy to open a uibuilder web page or open the IDE code editor for the uibuilder instance.

  • In addition to the menu improvements, the default style sheet will have:

    • Updated table headers - making table headers sticky automatically - great for long data tables.
    • The accent-color has been updated to use the default secondary color instead of the brand color.
    • summary elements now get the cursor set to pointer.

On the development side, there are the usual tidy-ups of code. A continual gradual renaming of libraries/modules to match whether they are CommonJS/Script or ES Module's. New ESBUILD configurations also being used which improves robustness of the build processes.

Also under way for the uibuilder front-end client library are some experimental features. Specifically a new "reactive" feature that, when complete, will bring some of the reactive data features you are used to with front-end frameworks like VueJS but, of course, not needing a framework as they leverage vanilla HTML/JavaScript. Not quite sure whether that will be ready for v7.5.

Reactive variables mean that you can update a variable in JavaScript (or remotely from Node-RED) and the UI will update automatically.

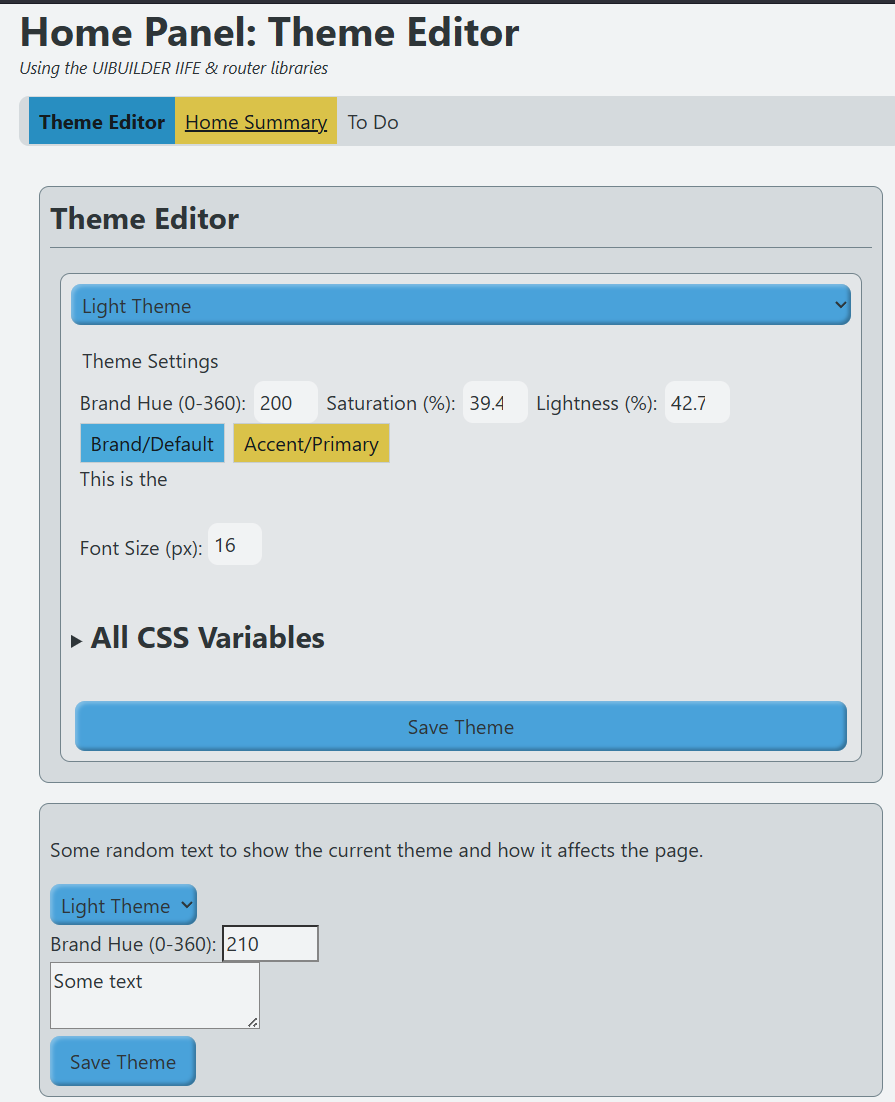

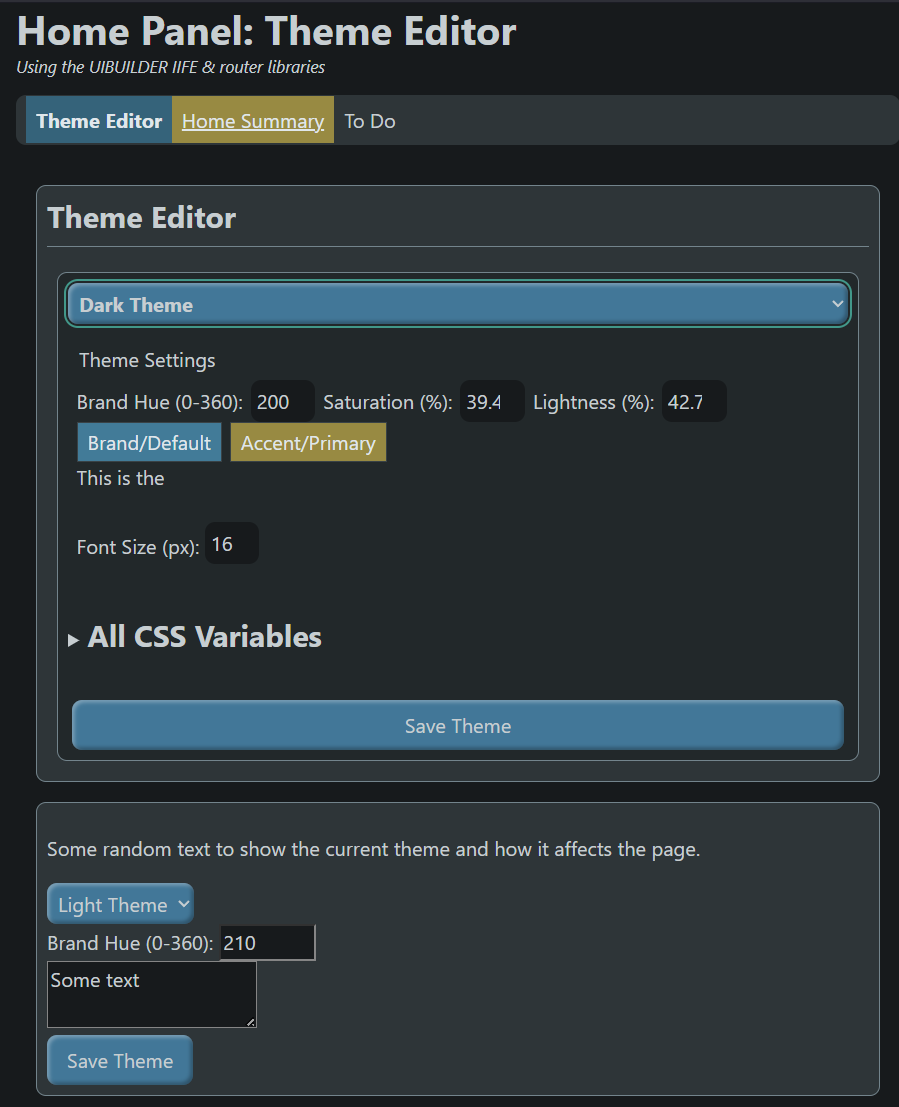

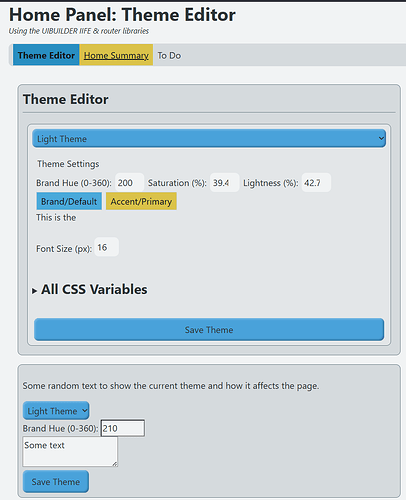

I've also done some additional work on the styles. Namely to improve the default text contrast slightly and improve form elements:

(Note that for both images, the cursor was hovering over the "Home Summary" menu item).

And yes, I really am working on some theme editor forms. :smiley:
