Yet another "strange" behavior of the switch node

General
1

First of all, some contextual info
OS: Linux RevPi34798 4.19.95-rt38-v7.
Dashboard version: v1.35.

The problem. I am designing a flow where a given message payload of the form

{
"section_1":{"CEV" : 0, "s" : 2},
"section_2":{"CEV" : 1, "s" : 3},
"section_n":{"CEV" : 0, "s" : 1}
}

(n stands for a generic number of sections, and can be just 1) is first split with a standard (dashboard) split node in parts whose msg.payload have the following form:

{"CEV":0, "s":2}

These parts are then split again in messages whose payload are their simple numerical values: here it comes the problem. I want to route these values by using a switch node according to their msg.part.key value (respectively CEV and s): however, this does not work.
For example, in the 1-section model flow below

Schermata 2022-05-03 alle 09.31.21
Schermata 2022-05-03 alle 09.31.211526Ă—322 32.2 KB

where the inject node sec_sts injects the following complete message (copied from the preceding switch node in the full flow)

{
"_msgid":"bd05ad6a.fcb66",
"payload":{"CEV":0,"s":2},
"topic":"section_1",
"_event":"node:d7590ba5.b163f8",
"parts": {
         "id":"7e6805a9.7a7c4c",
         "type":"object",
         "key":"section_1",
         "index":0,
         "count":1}
}

and the split node works perfectly giving the following two complete messages

{
"payload":0,
"topic":"section_1",
"_event":"node:d7590ba5.b163f8",
"parts":{
        "parts":{
                 "id":"7e6805a9.7a7c4c",
                 "type":"object",
                 "key":"section_1",
                 "index":0,
                 "count":1
                 },
        "id":"6cb0f9b3.45c048",
        "type":"object",
        "key":"CEV",
        "index":0,
        "count":2
        },
"_msgid":"8dd99f88.82b48"
}

and

{
"payload":2,
"topic":"section_1",
"_event":"node:d7590ba5.b163f8",
"parts":{
        "parts":{
                "id":"7e6805a9.7a7c4c",
                "type":"object",
                "key":"section_1",
                "index":0,"count":1
                },
        "id":"6cb0f9b3.45c048",
        "type":"object",
        "key":"s",
        "index":1,
        "count":2
        },
"_msgid":"3e32f1bf.799b2e"
}

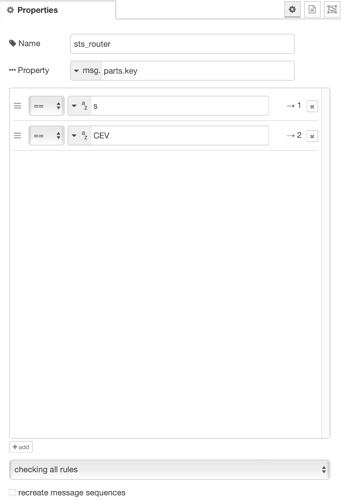

I am not able to make the sts_router split node work correctly, i.e. to make it work according to the values of the msg.parts.key property. Setting of the sts_router node is

Schermata 2022-05-03 alle 11.45.59
Schermata 2022-05-03 alle 11.45.591170Ă—1712 96.5 KB

I'm almost sure that I am missing something trivial, but I am not able to see it, so I've decided to ask for your precious help. Thanks in advance.

2

Can you share this flow?

1 Like
3

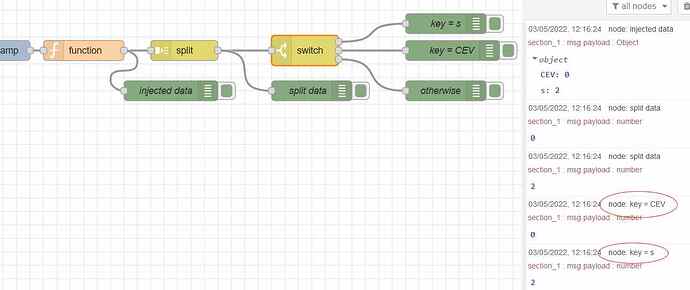

It seems to work for me:

Untitled 4
Untitled 41286Ă—542 41.3 KB

[{"id":"985a0f35b471ede0","type":"inject","z":"b5d64c1e024cd3e1","name":"","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"","payloadType":"date","x":100,"y":80,"wires":[["11070a651fa11b17"]]},{"id":"11070a651fa11b17","type":"function","z":"b5d64c1e024cd3e1","name":"","func":"msg = {\n    \"_msgid\": \"bd05ad6a.fcb66\",\n    \"payload\": { \"CEV\": 0, \"s\": 2 },\n    \"topic\": \"section_1\",\n    \"_event\": \"node:d7590ba5.b163f8\",\n    \"parts\": {\n        \"id\": \"7e6805a9.7a7c4c\",\n        \"type\": \"object\",\n        \"key\": \"section_1\",\n        \"index\": 0,\n        \"count\": 1\n    }\n};\nreturn msg;","outputs":1,"noerr":0,"initialize":"","finalize":"","libs":[],"x":240,"y":80,"wires":[["5aa06001df5f592f","1337022978ff3031"]]},{"id":"5aa06001df5f592f","type":"split","z":"b5d64c1e024cd3e1","name":"","splt":"\\n","spltType":"str","arraySplt":1,"arraySpltType":"len","stream":false,"addname":"","x":390,"y":80,"wires":[["dd5fe6d32c4004aa","789e98ce129cb03b"]]},{"id":"1337022978ff3031","type":"debug","z":"b5d64c1e024cd3e1","name":"injected data","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":370,"y":140,"wires":[]},{"id":"dd5fe6d32c4004aa","type":"switch","z":"b5d64c1e024cd3e1","name":"","property":"parts.key","propertyType":"msg","rules":[{"t":"eq","v":"s","vt":"str"},{"t":"eq","v":"CEV","vt":"str"},{"t":"else"}],"checkall":"true","repair":false,"outputs":3,"x":570,"y":80,"wires":[["5f3ddd60801eed9d"],["27bd395092ec0d30"],["a9766439d28fd31e"]]},{"id":"5f3ddd60801eed9d","type":"debug","z":"b5d64c1e024cd3e1","name":"key = s","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":780,"y":40,"wires":[]},{"id":"27bd395092ec0d30","type":"debug","z":"b5d64c1e024cd3e1","name":"key = CEV","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":790,"y":80,"wires":[]},{"id":"a9766439d28fd31e","type":"debug","z":"b5d64c1e024cd3e1","name":"otherwise","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":780,"y":140,"wires":[]},{"id":"789e98ce129cb03b","type":"debug","z":"b5d64c1e024cd3e1","name":"split data","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"payload","targetType":"msg","statusVal":"","statusType":"auto","x":580,"y":140,"wires":[]}]
1 Like
4

Shouldn’t you be testing msg.parts.parts.key?

1 Like
5

Sure, here it is.
flows-3.json (4.0 KB)

6

I dont see any issue other than you had turned off the debug node output. Here is your flow with separate debug nodes and output and status enabled....

image783Ă—203 12.1 KB

1 Like
7

No, I need to access the outer msg.parts.key which correspond to the latest split. Testing msg.parts.parts would be equivalent to extract the value of section_x, which is the same for CEV and s.

8

You're right: it seems it is an issue of the RIC out node: opening it seem that I lose the graphical enable command, possibly during some edit. I've deleted and readded it, and now it works. Thank you very much

9
